概述General introduction
RXQ3型消谐器是串接在6~35kV电压互感器一次绕组中性点与地之间的一种非线性电阻消谐阻尼器件,用于消除电网运行、切换操作及接地故障引起的电压互感器铁磁谐振,有效限制接地电流,使电压互感器免于损坏。
RXQ3 resonance eliminator is a nonlinear resonance elimination damper resistance cascaded to between 6 ~ 35kV voltage transformer primary winding neutral point and the ground, used for the elimination of voltage transformer is ferromagnetic resonance caused by grid operation, switching operation and grounding fault to effectively limit ground current and protect voltage transformers from damage.
RXQ3型消谐器的电阻元件选用电气性能优异、超细颗粒的稀有金属为基材的配方体系,经大吨位的液压机压制成高密度的饼型坯体及千度高温烧结而成,裸露的的电阻元件表面结构经特殊处理,可户外裸露使用。
The resistive elements of RXQ3 resonance eliminator are made by pressing the formula system with excellent electrical performance, ultra-fine particles and metals as the base material into high-density green body the large-tonnage hydraulic machine body by large-tonnage hydraulic machine and then go through thousand degrees high temperature sintering. Through special processing, the bare resistive element special surface structure can be exposed for outdoor use.

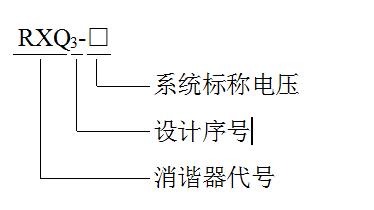

产品型号说明Model description
主要技术参数Main technology parameters
型号Type | RXQ3-6~10 | 备注 | ||
系统标称电压Nominal voltage of system kV | 6~10 | |||
系统接地方式Grounding of system | 不接地 Non Grounding | |||
非线性系数Nonlinear coefficientα | 0.4~0.5 | |||
直流残压DC residual voltage kV(15mA) | 1.45~1.65 | |||
外绝缘1分钟工频耐受电压 External insulation 1 minute power frequency withstand voltage | 8 | |||
热容量试验 Heat capacity test | 10分钟工频电流500mA 10 minutes power frequency current 500mA | 无明显损坏,试验前后,直流残压的变化率≯±5% No significant damage, before and after the test, the change rate of DC residual pressure is ≯ ± 5% | ||
2小时工频电流100mA 2-hour power frequency current 100mA | ||||
高度Height mm | 165 | |||
消谐器两端电压测量Voltage measurement at both ends of the harmonic elimination device | U≤3.0KV | |||
电压、电阻参数测量Voltage and resistance parameter measurement | 0.3mA时 | 电压100~160V | ||
电阻>450KΩ | ||||
3.0mA时 | 电压400~600V | |||
电阻>180KΩ |
外形结构图Outline structure
用户须知User notice
1 RXQ3-35型消谐器适用于高压尾端与首端相同的电压互感器的保护,如JDJJ-35、JDJJ1-35、JDJJ2-35、JDZX-35、JDZXW-35、JDX6-35、JDX7-35等,RXQ3-35I型消谐器适用于高压尾端绝缘较低的电压互感器的保护,如JDZX8-35G、JDZX9-35、JDZX11-35、UNE-35、UNEW-35等。
RXQ3-35 resonance eliminator is suitable for protection of voltage transformer with same high-pressure tail and head end, such as JDJJ-35, JDJJ1-35, JDJJ2-35, JDZX-35, JDZXW-35, JDX6-35, JDX7- 35, etc., RXQ3-35I resonance eliminator is suitable for protecting voltage transformer with lower high-pressure end insulation, such as JDZX8-35G, JDZX9-35, JDZX11-35, UNE-35, UNEW-35 and so on.
2 消谐器在投入运行前或运行一年后,应做预防性试验,其项目为:测量消谐器的直流残压,直流电压脉动系数不得大于±1.5%。
RXQ3 resonance eliminator should do defense tests, before running or after used one years. ways are as following:Measuring the DC residual voltage of the resonance eliminator, the DC voltage ripple factor shall not exceed ± 1.5%.
3 在日常运行中,由于单相接地或负载不对称等其它原因造成三相电压不对称,这时消谐器上有一定的电压,人员请勿直接接触。
In daily operation, if three-phase voltage asymmetry is caused by the single-phase grounding or load asymmetry, then there is a certain voltage on the resonance eliminator; the staff shall not directly contact it.
4 用户不得随意拆装改产品,订货时请写清产品型号。
Users are not free to disassemble or change the product. Please write clearly the full product model when ordering.
5 使用在空气中无严重污秽及腐蚀性介质的场所。
Use the product in the places where there is no serious contamination and corrosive media in air.
6 外形合理、体积小、重量轻;
Reasonable shape, small size, light weight;
7 热容量大、温升低、散热快;
Heat capacity, low temperature, fast heat dissipation;
8 结构独特、强度高,易安装。
Unique structure, high strength, easy installation.
