全绝缘复合外套金属氧化物避雷器

产品时间:2022-05-06 08:52:08

简要描述:

全绝缘复合外套金属氧化物避雷器是一种新型过电压保护器,外形结构简单,高压端的绝缘导线与避雷器芯体整体成型,密封性能良好,节电强度高。The metal oxide arrester with all-insulated compound coat is a kind of new type over-voltage protector with simple configuration. The insulated wire at the end of high...

推荐产品
详细介绍

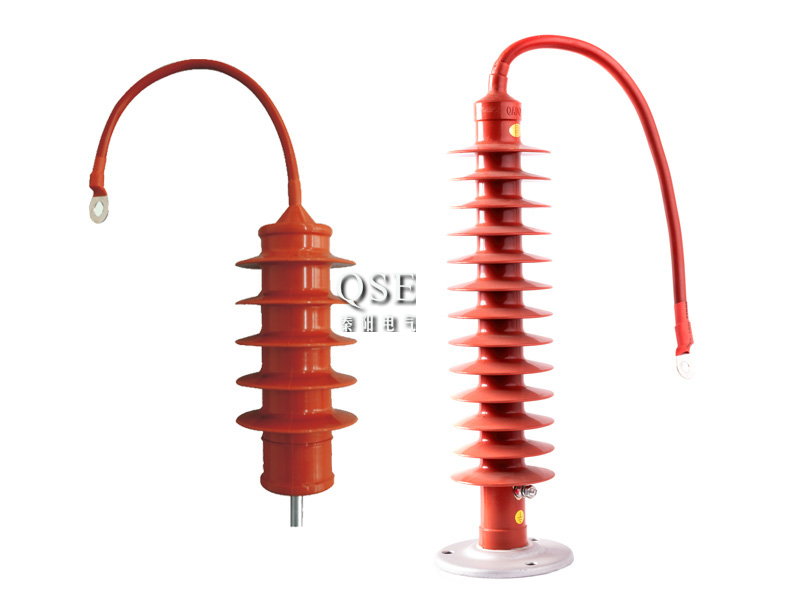

全绝缘复合外套金属氧化物避雷器是一种新型过电压保护器,外形结构简单,高压端的绝缘导线与避雷器芯体整体成型,密封性能良好,节电强度高。

The metal oxide arrester with all-insulated compound coat is a kind of new type over-voltage protector with simple configuration. The insulated wire at the end of high voltage can shape in integration with core of the arrester. Such arrester has good seal performance and high electricity saving strength.

由于避雷器在使用时必须保证相间绝缘距离,且随着使用条件的变化,其爬电距离,相间距离也要相应增加,本产品正是克服了这些缺点,提高了避雷器的爬电距离,缩小了避雷器本体之间的绝缘尺寸,方便、灵活的适用于不同安装环境,尤其适用于有限空间的开关柜中和高海拔、重污秽等地区。

 When using the arrester, its inter-phase insulation distance must be guaranteed, the distance should be changed as using conditions, so that creeping distance and inter-phase distance should be increased accordingly. The arrester produced by our company has overcome such disadvantages, which widened creeping distance and narrowed insulation size between arrester bodies, so that they are convenient and flexible which are suitable to different installing environment, especially can be installed in switch cabinets, high-altitude areas and areas heavily contaminated areas with limited space.

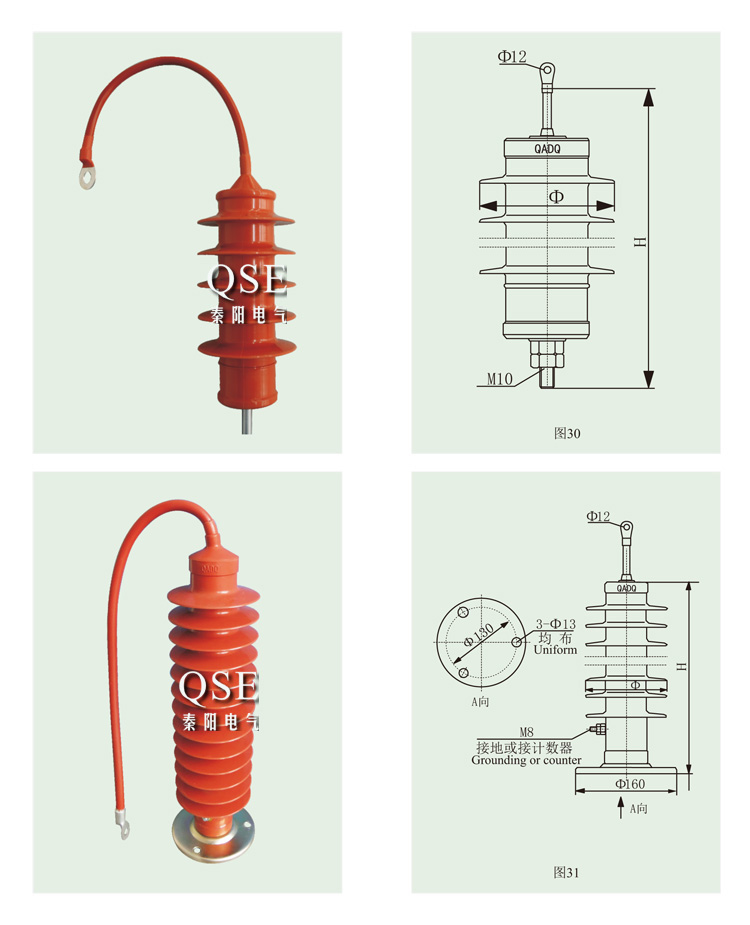

我公司目前主要生产35kV及以下电压等级的全绝缘复合外套金属氧化物避雷器,其主要参数与前面介绍的35kV及以下复合外套金属氧化物避雷器相同,其高压绝缘导线标准长度为500mm,如有特殊要求,请在合同中注明。

Parameters of the metal oxide arrester with all-insulated compound coat whose voltage level is 35kV and below are the same as the metal oxide arrester with compound coat whose voltage level is 35kV and below. Standard length of the high-voltage insulated line is 500mm.If you have any special requirements, please indicate in the contract.
